Linear Electric Zoom DMX LED Moving Head Spot Light 550W For Wedding Event

Ask Lasest Price
Brand Name :	Bright lighting
Model Number :	BR-BY1240F
Certification :	CE ISO9000
Price :	Negotiable
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	3000PCS per month
Delivery Time :	7-15days

Add to Cart

Product Details
Company Profile

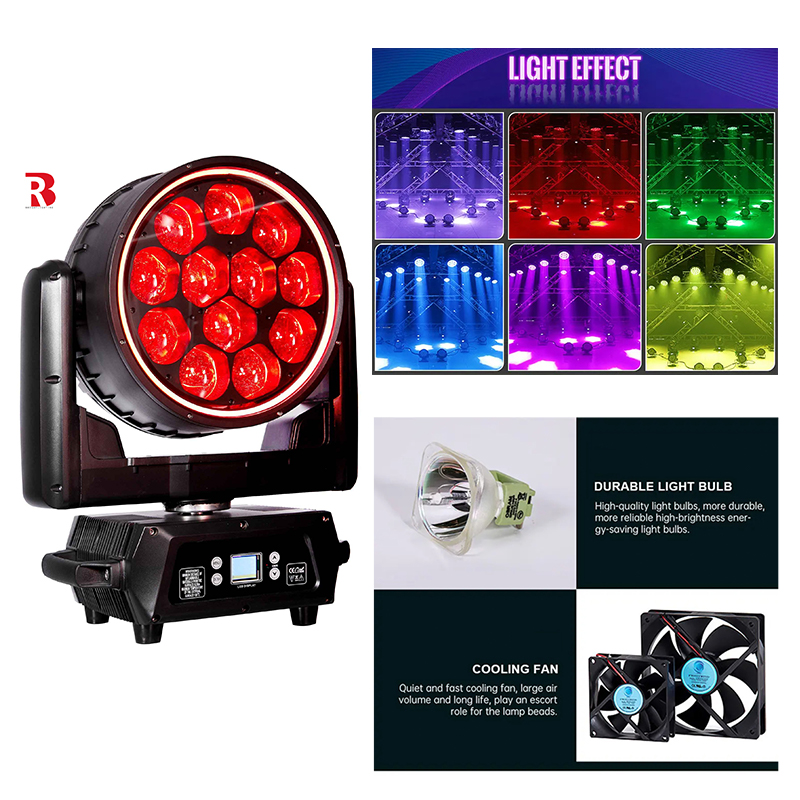

Linear Electric Zoom DMX LED Moving Head Spot Light 550W For Wedding Event

Dmx Outdoor Moving Head Stage Light Spot Stage Light For Wedding Event

Specifications:

Voltage range:	AC100V-240V/50-60Hz
Rated power of the whole machine:	550W
Light source:	12 x 40W RGBW LED high-brightness imported lamp beads
Average life:	50000h
Control mode:	DMX512, RDM, master-slave mode
Channel mode:	Built-in 2 channel modes 22CH/74CH (standard mode
Scanning system:	X stroke: 540° Y stroke 216°
Optical system:	high-precision combined integrated structure lens, high-transmittance quartz glass light rod + PMMA lens
Optical angle:	5°～45° adjustable angle
Beam beam:	Small angle beam effect is outstanding
Wash dyeing:	medium and large angles to spread light evenly
Color:	RGBW color mixing system, uniform color mixing without flickering, fast color rainbow effect
Color temperature adjustable:	2500～10000K
Effect macro:	static effect macro function and dynamic effect macro function
Strobe:	1-25Hz electronic strobe and random multiple strobes
Dimming:	electronic dimming, 4 dimming modes
Zoom system:	Linear electric zoom
Front halo light strip:	can be controlled by a single point to chase the color-changing effect of flowing horse racing at will
Single circle control:	The light source supports independent control of color change in inner and outer single circles.
Single point control:	The light source supports individual independent control and color transformation
Display screen:	1.77-inch OLED screen, Chinese and English bilingual menu, anti-interference photoelectric signal isolation system, waterproof smart touch keys
Intelligent management and control:	Through the lighting menu, you can check the equipment usage and lighting time, equipment temperature,Channel data and software version information, etc.
Temperature control:	Intelligent temperature control, which can automatically adjust the cooling fan speed and overheat protection
Software upgrade:	Upload upgrade files through DMX interface
Magnetic encoding positioning:	non-contact magnetic rotary encoder positioning, signal feedback, absolute position memory
Shell material:	The latest second generation structural waterproof design, metal die-cast aluminum shell and fireproof engineering plastic

Additional details:

Working principle:
1:Light source emission: Emit light beams through light sources such as high-power halogen lamps, LEDs or lasers.
2:Beam design and adjustment: The beam goes through a sophisticated optical system, including the design and adjustment of lenses, reflectors, color filters and other components to produce the required lighting effects.
3:Lamp body motion control: Built-in precision motor and control system, through DMX signal or automatic program, the rotation, tilt and focus of the lamp body can be realized.

Technical principle:
1:Optical system: Including lenses, reflectors and other components, used for the aggregation and scattering of light beams, as well as the design of special lighting effects.
2:Motion control system: Including motors, transmission devices and control chips, etc., to achieve precise control of the movement of the lamp body, including horizontal 360°, vertical 270° rotation, etc.
3:Control method: Supports a variety of control methods, including DMX512 standard control, automatic program control, music trigger control, etc.

Application:

1:Festival celebrations: It is suitable for various major festival celebrations, city light shows and other activities. Through its high brightness and various light effect modes, it can provide gorgeous light show performances for celebration activities.
2:Literary party: Used for outdoor literary parties, celebration parties and other activities. Through its full range of motion and multi-color lighting effects, it adds vitality and color to the party scene.

Service:

Provide after-sales service
