Ask Lasest Price | |
Brand Name : | Bright lighting |
Model Number : | BR-B380 |
Certification : | CE ISO9000 |
Price : | Negotiable |
Payment Terms : | T/T, Western Union, MoneyGram |
Supply Ability : | 3000PCS per month |
Delivery Time : | 7-15days |
Voltage: | AC100V-240V 50/60HZ |
Light source: | 380W lamp |
Power consumption: | 450W |
Channel: | 16CHs |
Color: | 14 colors + open |
Gobo: | 17 gobos + open |
Strobe: | 0-10 times/second |
Pan: | 540 degree+16 bit fine |
Tilt : | 270 degree+16 bit fine |
Display: | LCD display |
Prism: | 16+48 facet prism can mix with the 6 colors wheel,Electronic focus, frost effect |
N.W: | 20.5 KG |
G.W: | 23.5 KG |
Package size(1/CTN): | 48.5*48*72 CM |
Additional details:
Technical principle:
The 380W beam lamp generates a strong light beam through a
high-power bulb, which is composed of a precise optical lens, and
then realizes various lighting effects by rotating the lens and
control system. The control system uses professional equipment or
software to control the brightness, color and motion trajectory of
the beam lamp.
Working principle:
1:High power lamp: Use 380 watt high power lamp as light source,
produce high brightness white light.
2:Beam imaging: Light passes through an optical lens to form an
image that focuses scattered light into a concentrated beam.
3:Lighting effects: By rotating lenses and filters and other
equipment to achieve different colors, shapes and motion of the
lighting effects.
4:Remote illumination: Using beam focusing and accurate control to
achieve the illumination of distant targets.

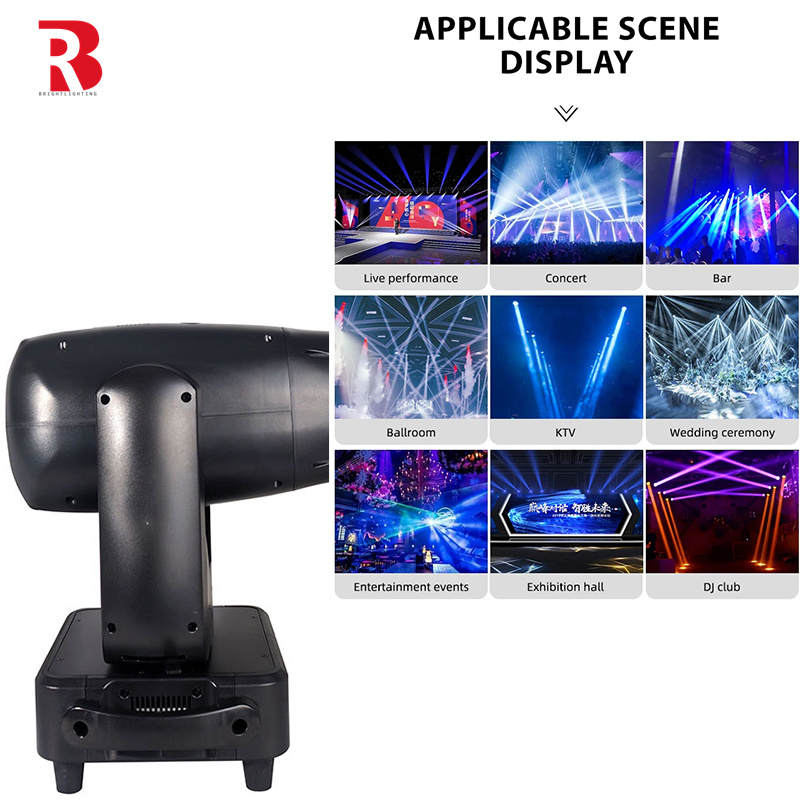

Applications:
![]() |
